Product Overview

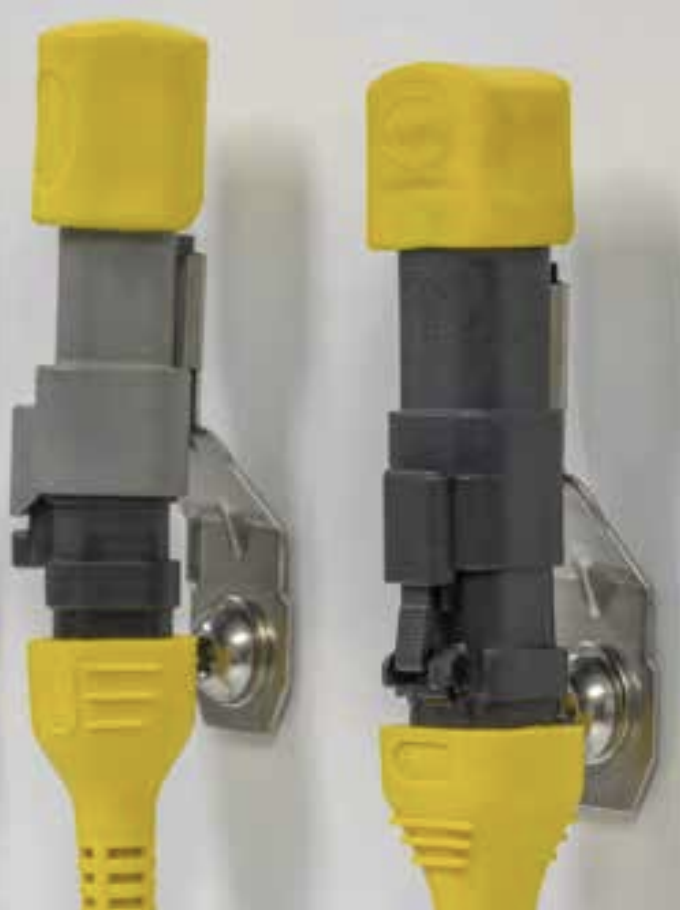

Introducing the DT Series: Overmolded Electronics. This innovative product range showcases HMWS' advanced overmolded solutions, specifically designed for critical electronic components such as diodes, resistors, and capacitors. Built on the widely recognised and trusted industry-standard connector range, these solutions offer a tough, durable, and watertight enclosure that ensures long-lasting protection in demanding environments.
The DT Series not only provides superior performance but also offers exceptional versatility, as each solution can be tailored to meet specific project requirements. One of the key benefits of this series is its ability to eliminate the common pitfalls associated with traditional methods, such as splicing diodes and resistors into wiring looms. This process often leads to vulnerabilities, including higher failure rates and difficulties in servicing or testing components.
By integrating these overmolded electronics into your system, you significantly reduce the risk of component failure while also streamlining maintenance procedures, providing a more reliable and easily serviceable solution. The DT Series combines high performance, ease of installation, and enhanced longevity, making it an ideal choice for a wide range of applications.

Product Description
The DT Series: Overmolded Electronics solutions are designed to provide a robust and reliable connection for electronic components such as diodes, resistors, and capacitors. Built on industry-standard connectors, these overmolded solutions ensure a durable, watertight enclosure that is perfectly suited for demanding environments.
The DT Series eliminates the challenges associated with splicing components into wiring looms, minimising the risk of failure and simplifying maintenance. Customizable to meet specific requirements, this series delivers enhanced performance, increased reliability, and easier serviceability.
DT Series Overmolded Electronics offer:
- Watertight design for protection in harsh, demanding conditions
- Customisable to meet specific project requirements
- Eliminates issues associated with splicing components into wiring looms
- Enhanced ease of maintenance and serviceability


Product Specifications

HMOE-D-04-02-0-01
2 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 1 |


3 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 2 |


4 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 2 |


6 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 4 |


8 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 5 |


8 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 4 |

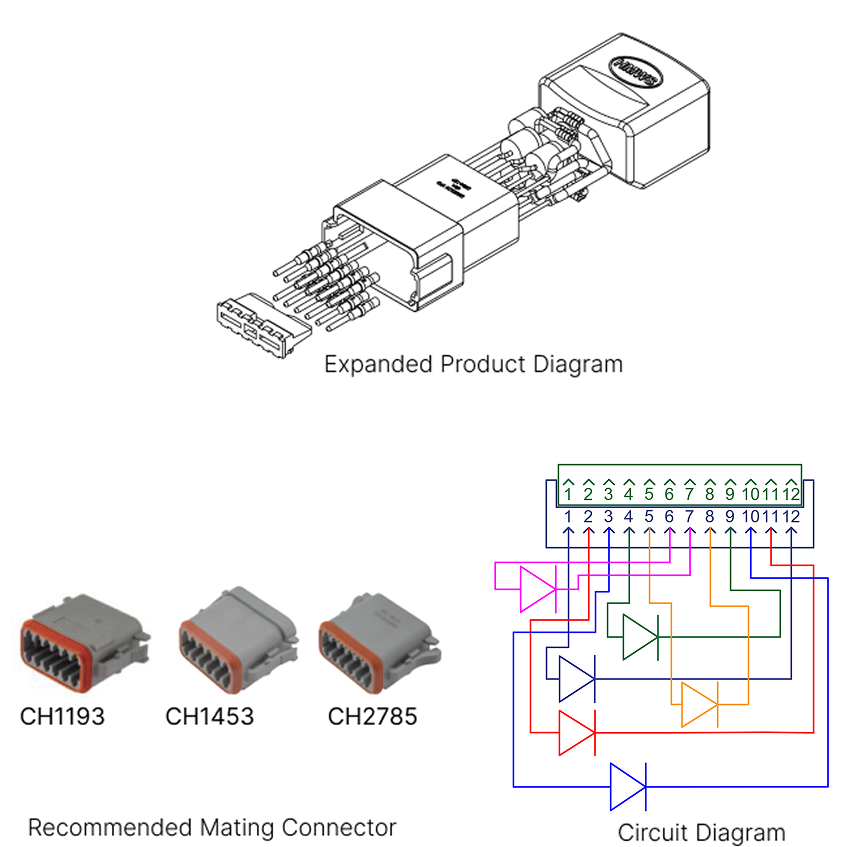

HMOE-D-04-12-A-08
12 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 8 |

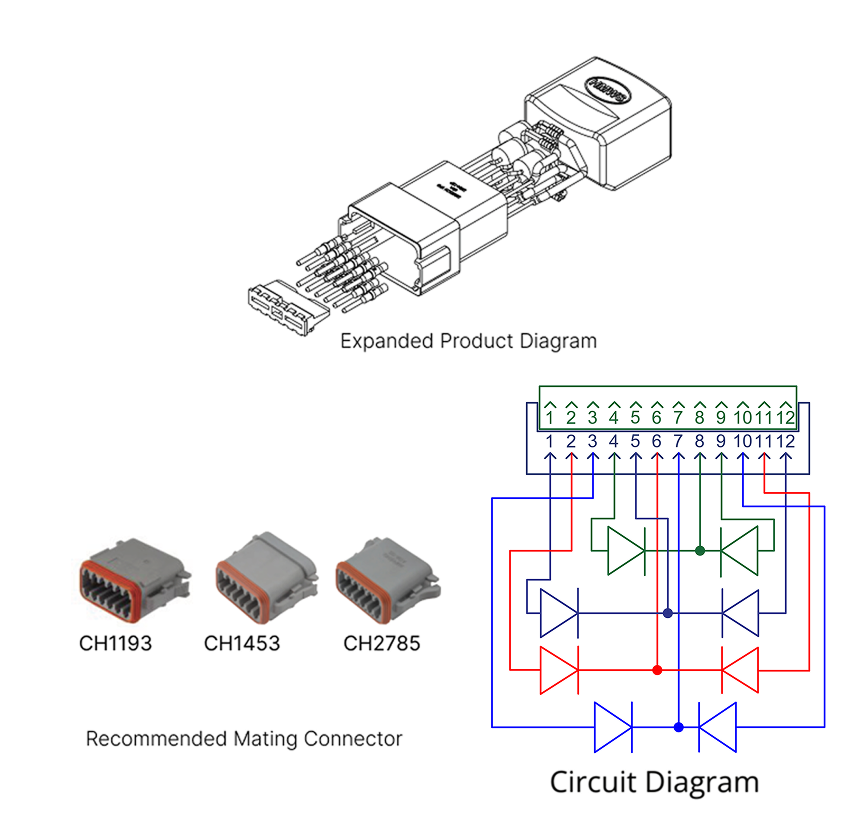

HMOE-D-04-12-A-09
12 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 6 |


18 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 12 |


18 CAVITY RECEPTACLE DIODE MATRIX
Material | Low-density polyethylene (LDPE) |
Contact Size | #16 |
Current Rating | 6 A |
Operating Temperature | -40oC to +125oC |
Number of Diode | 12 |
